Description

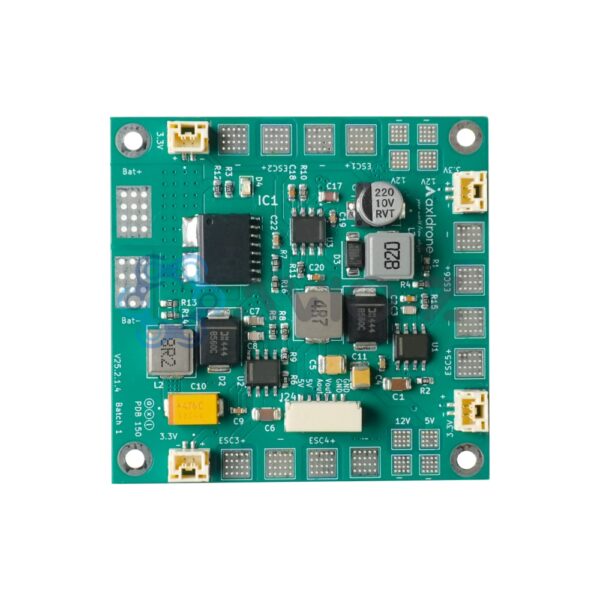

Axldrone PDB 80A Power Distribution Board is designed for UAVs, drones, quadcopters and hexacopters, supporting up to 80A continuous current and 30V (6S) input. It features a built-in Hall-effect current sensor for accurate telemetry and supports up to 6 ESCs through solder pads. Regulated 5V/4A, 12V/4A and 3.3V/1.5A outputs provide reliable power for flight controllers and onboard electronics.

Key Features:
•80A continuous current handling
•Supports up to 30V / 6S LiPo input
•Integrated Hall-effect current sensor
•Voltage sensing for accurate telemetry and monitoring
•Supports up to 6 ESCs through solder pads
•Compatible with quadcopters and hexacopters
•Regulated 5V / 4A output
•Regulated 12V / 4A output
•Regulated 3.3V / 1.5A output
•Compact high-density FR4 PCB
•M3 mounting holes
•Designed for drone, UAV and robotics integration
•Board Dimensions (L x W x H) 54 mm × 56 mm × 7.5 mm
•Weight 18g
