PDB 400A Power Distribution Board, 14-60V, 8*60A Outputs-Axldrone

Description

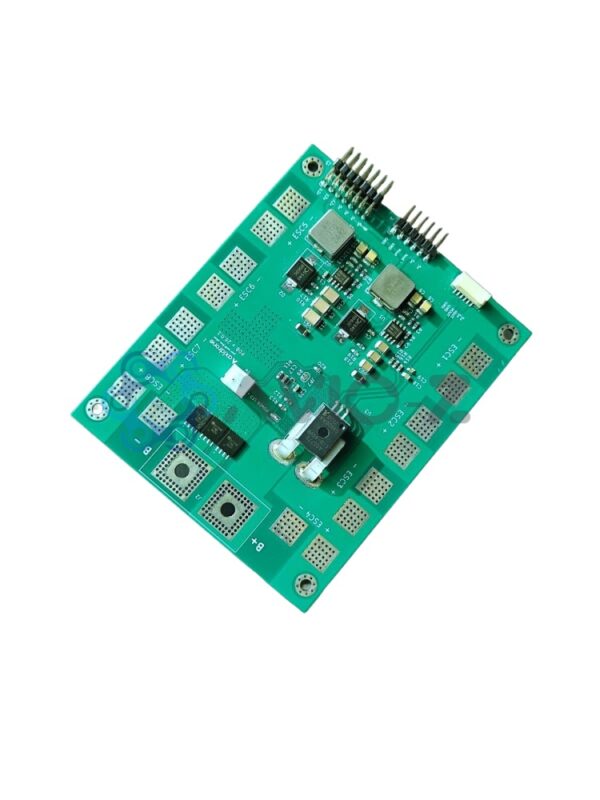

The Axldrone PDB 400A Power Distribution Board is designed for heavy-lift drones, UAVs and high-power systems. It supports up to 400A continuous distributed load and 14-60V input, with 8*60A high-current output pads, integrated Hall-effect current sensing, dual regulated 5V/4A and 12V/4A BEC outputs, and MOSFET-based soft power switching.

Key Features
•400A continuous distributed load
•14-60V input voltage (14S max)
•8*60A high-current solder output pads
•Integrated Hall-effect current sensor
•Dual regulated 5V/4A & 12V/4A BEC outputs
•MOSFET-based soft power switching
•Large-area 2oz copper planes
•106*87*12 mm dimensions
•55g weight”
